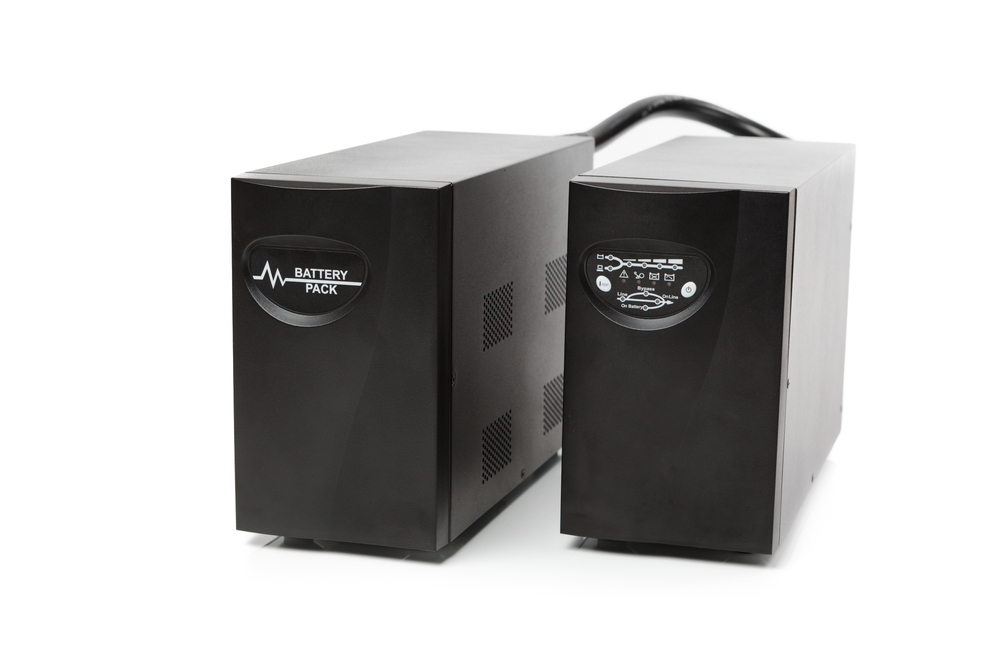

Difference Between Standby Power Supply and Uninterruptible Power Supply

In today's technology-driven world, ensuring a reliable power supply is essential. Power interruptions can lead to data loss, system crashes, and hardware damage, especially in critical environments such as data centers, hospitals, and industrial facilities.

Two common solutions to power interruptions are Standby Power Supply (SPS) and Uninterruptible Power Supply (UPS). While both are designed to provide backup power, they function differently and are suited for different applications.

This blog post explores the difference between Standby Power Supply and Uninterruptible Power Supply, detailing their working mechanisms, advantages, disadvantages, and suitable use cases.

What is a Standby Power Supply (SPS)?

A Standby Power Supply, also known as an offline UPS, is a type of power backup system that remains inactive until a power failure occurs. The SPS continuously monitors the main power supply and switches to battery power only when it detects a disruption or voltage anomaly. This transition typically takes a few milliseconds, during which the connected devices may experience a brief interruption.

Working Mechanism of SPS

Normal Operation: Under normal conditions, the SPS allows the main power supply to pass directly to the connected devices while simultaneously charging its internal battery.
Power Failure: When the SPS detects a power failure or significant voltage fluctuation, it switches to battery power, providing an alternative power source to the connected devices.
Transition Time: The transition time from the main power supply to battery power is typically 2-10 milliseconds, which might be noticeable in sensitive electronic equipment.

Detailed Components of SPS

Battery: The battery is the heart of the SPS, providing backup power during an outage. These are typically sealed lead-acid (SLA) or lithium-ion batteries, chosen for their reliability and efficiency.
Inverter: Converts the DC power stored in the battery to AC power, which is used by most household and office appliances.
Charger: Keeps the battery charged during normal operation by converting AC power from the mains to DC power for storage in the battery.
Transfer Switch: Monitors the mains supply and switches to battery power in case of a failure, ensuring that connected devices receive power during an outage.

Suitable Use Cases for SPS

Home Offices: For protecting personal computers, modems, and routers.
Small Businesses: Ideal for small offices with less critical equipment.
Non-Critical Applications: Suitable for environments where brief power interruptions are tolerable.
Home Entertainment Systems: Protecting televisions, gaming consoles, and home theater systems from power interruptions.

Advantages and Disadvantages of SPS

Advantages of SPS

Cost-Effective: SPS units are generally less expensive than other types of UPS systems, making them an attractive option for home and small office use.
Energy Efficient: Because the SPS does not continuously run off its battery, it consumes less power during normal operation.
Simplicity: The design and operation of SPS units are straightforward, leading to ease of maintenance and installation.
Compact Design: SPS systems are often more compact than other UPS systems, making them ideal for environments with limited space.

Disadvantages of SPS

Brief Interruption: The switch-over time can cause a brief power interruption, which might affect sensitive equipment.
Limited Protection: SPS systems offer limited protection against power surges, spikes, and other power anomalies compared to other UPS systems.
Battery Degradation: Over time, the battery in an SPS can degrade, reducing its effectiveness and requiring replacement.

What is an Uninterruptible Power Supply (UPS)?

An Uninterruptible Power Supply, commonly referred to as UPS, is a system that provides continuous power to connected devices by supplying power from its internal battery when the main power supply fails. Unlike SPS, a UPS provides immediate power without any noticeable interruption, making it suitable for critical applications where even a brief power loss can be detrimental.

Types of UPS

Online UPS: Also known as double-conversion UPS, this type continuously converts incoming AC power to DC power to charge the battery, then back to AC power to supply the connected devices. It provides the highest level of protection and zero transfer time.
Line-Interactive UPS: This type provides continuous power with an automatic voltage regulation (AVR) feature to correct minor power fluctuations without switching to battery power. It has a short transfer time of 2-4 milliseconds.
Offline/Standby UPS: Similar to the SPS discussed earlier, this type of UPS switches to battery power during a power failure but is generally considered part of the broader UPS category.

Working Mechanism of UPS

Normal Operation: In an online UPS, the AC power is converted to DC to charge the battery and then converted back to AC to supply the devices. In a line-interactive UPS, the AVR corrects minor voltage fluctuations while the battery remains on standby.
Power Failure: Upon detecting a power failure, an online UPS continues to provide power from the battery without any transfer time. A line-interactive UPS switches to battery power with a minimal transfer time of 2-4 milliseconds.
Continuous Power Supply: Both types ensure continuous power supply to the connected devices, protecting them from power interruptions and anomalies.

Detailed Components of UPS

Rectifier: Converts AC power to DC power to charge the battery.
Battery: Stores energy to be used during a power outage. Typically, UPS systems use SLA or lithium-ion batteries.
Inverter: Converts DC power from the battery back to AC power to supply connected devices.
Bypass Switch: Allows the system to bypass the UPS in case of a fault or maintenance, ensuring that connected devices continue to receive power.
Control Unit: Manages the operation of the UPS, including switching between normal and backup power, monitoring battery status, and providing alerts.

Suitable Use Cases for UPS

Data Centers: Essential for providing uninterrupted power to servers and networking equipment.
Hospitals: Critical for maintaining power to life-support systems and medical equipment.
Industrial Facilities: Important for ensuring continuous operation of manufacturing processes and machinery.
Large Offices: Necessary for protecting multiple computers, communication systems, and other critical infrastructure.
Financial Institutions: Banks and financial institutions use UPS systems to ensure that their IT infrastructure, including transaction processing systems and ATMs, remains operational during power outages.
Telecommunications: Ensures continuous power to critical telecom infrastructure, including base stations and network hubs.

Advantages of Disadvantages UPS

Advantages of UPS

No Interruption: UPS systems provide seamless power without any noticeable transfer time, ensuring continuous operation of critical devices.
Comprehensive Protection: UPS units offer robust protection against power surges, spikes, voltage fluctuations, and other power anomalies.
Versatility: UPS systems are available in various configurations and capacities, making them suitable for a wide range of applications from small offices to large data centers.
Remote Monitoring: Many modern UPS systems offer remote monitoring and management capabilities, allowing users to oversee the system's performance and status from a distance.

Disadvantages of UPS

Higher Cost: UPS systems, especially online UPS, are more expensive than SPS units due to their advanced technology and features.
Energy Consumption: UPS systems consume more power during normal operation, particularly online UPS, due to continuous double conversion.
Complexity: The advanced technology and features of UPS systems make them more complex, requiring professional installation and maintenance.
Heat Generation: UPS systems can generate more heat, necessitating additional cooling measures in some installations.

Key Differences Between Standby Power Supply and Uninterruptible Power Supply

Transfer Time

The most significant difference between Standby Power Supply and Uninterruptible Power Supply is the transfer time. An SPS has a transfer time of 2-10 milliseconds, which can cause a brief power interruption. In contrast, a UPS, particularly an online UPS, provides instantaneous power transfer with zero transfer time, ensuring continuous power supply without interruption.

Protection Level

A UPS offers a higher level of protection against power anomalies such as surges, spikes, and voltage fluctuations compared to an SPS. The double-conversion process in an online UPS and the AVR feature in a line-interactive UPS provide comprehensive protection, making UPS systems more suitable for sensitive and critical equipment.

Cost

SPS units are generally more cost-effective than UPS systems. The advanced technology and features of UPS units, especially online UPS, result in higher costs. However, the investment in a UPS is justified for critical applications where power continuity and protection are paramount.

Energy Consumption

SPS units are more energy-efficient during normal operation since they do not continuously run off the battery. On the other hand, UPS systems, particularly online UPS, consume more power due to the continuous double-conversion process. This increased energy consumption is a trade-off for the higher level of protection and continuous power supply.

Complexity

SPS units are simpler in design and easier to install and maintain. In contrast, UPS systems, with their advanced technology and features, require professional installation and regular maintenance to ensure optimal performance. This complexity can be a factor in deciding which system to choose based on the user's technical expertise and maintenance capabilities.

Applications and Real-World Examples

Understanding the difference between Standby Power Supply and Uninterruptible Power Supply is crucial for selecting the right power backup solution for your needs. Below are some real-world examples and applications of both SPS and UPS systems:

Standby Power Supply (SPS)

Home Entertainment Systems: Protecting televisions, gaming consoles, and home theater systems from power interruptions.
Personal Workstations: Ideal for individual workstations where brief power interruptions can be tolerated.
Retail Point of Sale (POS) Systems: Ensuring that cash registers and POS systems continue to operate during short power outages.

Uninterruptible Power Supply (UPS)

Data Centers: Large-scale UPS systems are used to provide uninterrupted power to critical data center operations, ensuring that servers, storage devices, and network infrastructure remain operational.
Healthcare Facilities: UPS systems are used to maintain continuous power to critical medical equipment, such as ventilators, monitors, and imaging devices, ensuring patient safety.
Financial Institutions: Banks and financial institutions use UPS systems to ensure that their IT infrastructure, including transaction processing systems and ATMs, remains operational during power outages.
Manufacturing Plants: In industrial settings, UPS systems are used to provide backup power to control systems, robotic machinery, and other critical manufacturing equipment.
Telecommunications: Ensures continuous power to critical telecom infrastructure, including base stations and network hubs.
Military Installations: Used in defense applications to maintain the operation of critical communication and control systems.

Maintenance and Best Practices

Both SPS and UPS systems require regular maintenance to ensure their reliability and performance. Here are some best practices for maintaining these systems:

Standby Power Supply (SPS) Maintenance

Regular Battery Checks: Periodically check the battery health and replace it as needed to ensure the SPS can provide backup power when required.
Clean and Dust-Free Environment: Keep the SPS unit in a clean, dust-free environment to prevent overheating and ensure optimal performance.
Test Switch-Over Functionality: Regularly test the switch-over functionality to ensure that the SPS can effectively transition to battery power during a power failure.
Firmware Updates: Update the SPS firmware as needed to ensure compatibility with newer devices and improve performance.

Uninterruptible Power Supply (UPS) Maintenance

Scheduled Battery Replacement: Follow the manufacturer's recommendations for battery replacement to prevent unexpected failures.
Firmware Updates: Keep the UPS firmware updated to ensure compatibility with the latest devices and to benefit from performance improvements and security patches.
Regular Load Testing: Conduct regular load tests to ensure that the UPS can handle the connected load during a power outage.
Professional Inspections: Schedule periodic professional inspections to identify and address potential issues before they lead to failures.
Environmental Control: Ensure proper ventilation and temperature control to prevent overheating and extend the lifespan of the UPS components.

Conclusion

Understanding the difference between Standby Power Supply and Uninterruptible Power Supply is crucial for selecting the right power backup solution for your needs. An SPS is a cost-effective and energy-efficient option for non-critical applications where brief power interruptions are acceptable. In contrast, a UPS, particularly an online UPS, provides seamless power transfer and comprehensive protection, making it ideal for critical environments where continuous power is essential.

When choosing between SPS and UPS, consider the specific requirements of your application, including the level of protection needed, acceptable transfer time, budget, energy consumption, and maintenance capabilities. By carefully evaluating these factors, you can ensure that your devices and systems remain operational and protected, even during power disruptions.
